12V DC Modbus System Hotel RCU Networked Light Switch With Touch Screen

FOB Reference Price:Get Latest Price
US $5-40 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Hicence
Model Number:
15DTS
Size:
86*86mm
Max. Current:
4.5A
Max. Voltage:
12V DC
Mechanical Life:
100000 Times
System:
Modbus
Material:
Tempered Glass
Operating:
Touching
Application:
Hotel, House
SupplyAbility
SupplyAbility:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
paper box
Port
Shenzhen
Lead Time :
5-30 days according to quantity

12V DC Modbus System Hotel RCU Networked Light Switch With Touch Screen



15DTS-4  (2).JPG

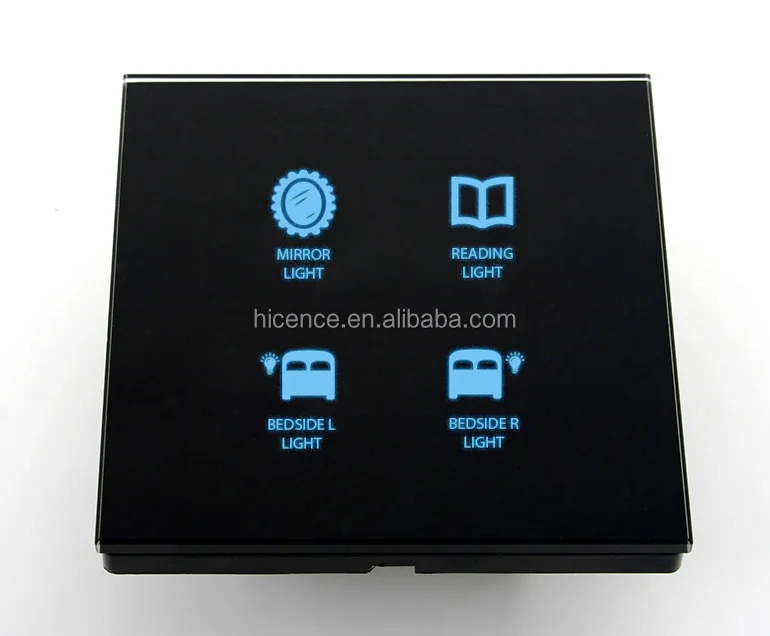

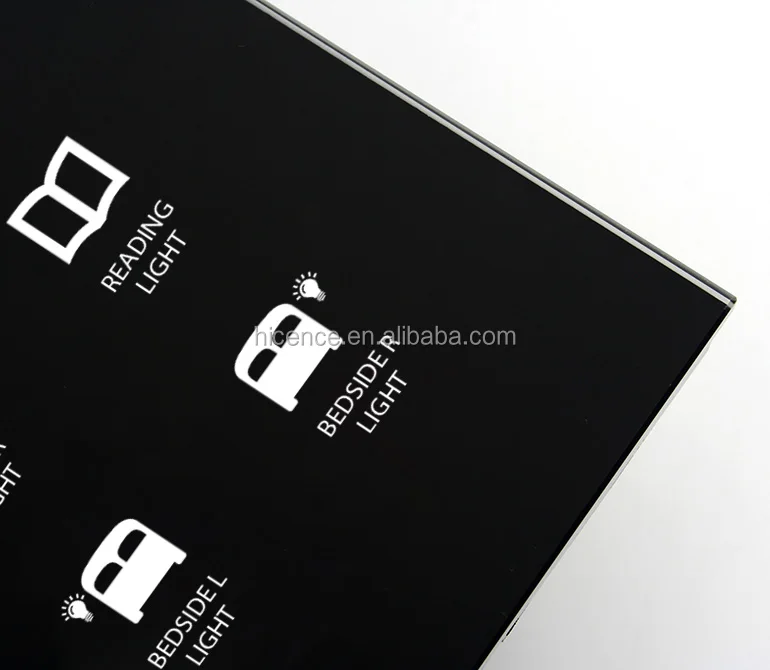

4mm luxury glass panel

Luxury glass panel, crystal, anti scratch, waterproof, anti leakage, easy to clean. Founder of the design to look more beautiful, around the panel, are used chamfering processing, more safety to use.



15DTS-4  (8).JPG

Flame retardant base

High quality PC (polycarbonate), impact resistance, heat resistance, flame retardant, mechanical properties, in line with international fire safety standards.

 15DTS-4 (3).JPG



Stable structure

High quality cold rolled steel plate bracket, through the insulation coating processing, with high strength, not easy to deformation, and convenient installation.

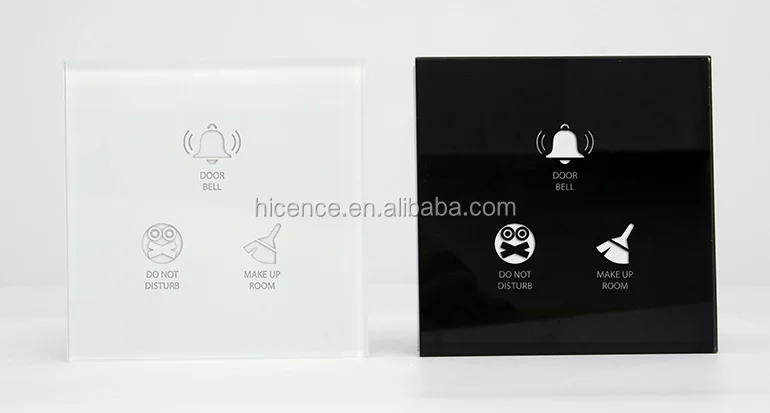

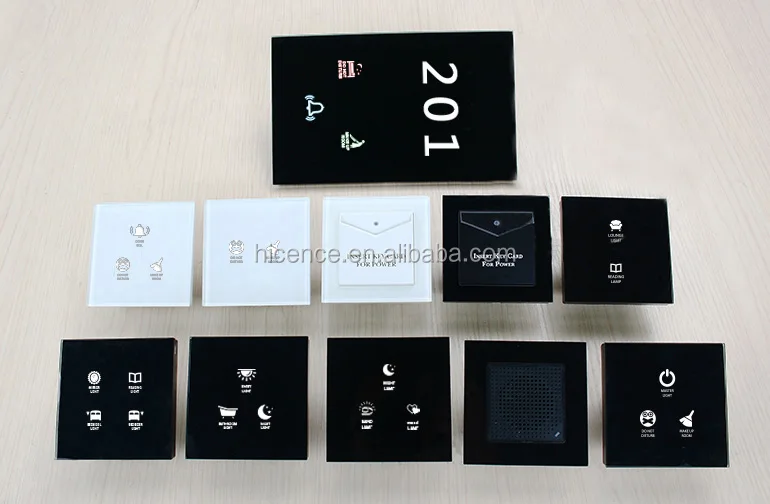

Color, pattern can be customized

A variety of colors (magnetic white, silver, champagne, gold) for choice, function keys can be customized according to different requirements of a unique icon.



15DTS3-3 (17).JPG

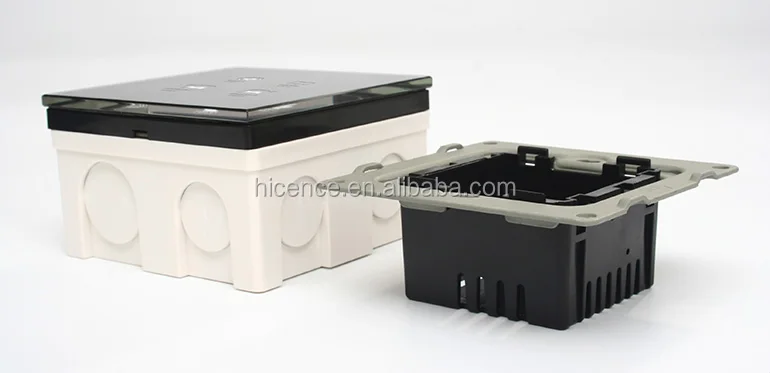

Modular design

Standardized and modular design, unified design, implementation of the functional combination of freedom, and convenience to the installation.



15DTS3-3 (3).JPG

Good heat dissipation design

Switch bottom box adopts straddle design and switch circuit design for open space, sufficient heat, thus extending the service life of the switch.

 15DTS3-3 (18).JPG

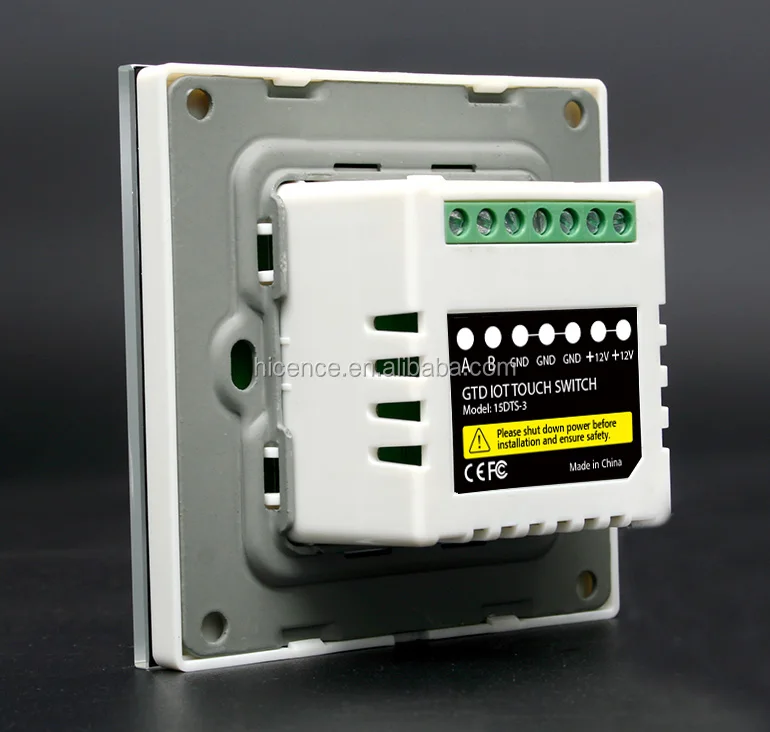

Press type connection mode

Connection mode of the column pressing connection, so the utility model has the advantages of convenient connection, also can make the line better convergence, use rise more convenient.



15DTS-4  (3).JPG

Power off memory function

After power off, the product will still retain the original settings, not because of power failure and need to re set, the operation is more simple.



15DTS-4  (15).JPG



Technical data

Input voltage: 12V

Communication protocol: Modbus

Baud rate: 9600/19200, 8 data bits, no parity, 1 stop bit

Product size: 86*86*42mm

Fixed screw center distance: 60mm (86mm button box)

Operating temperature: -10℃--60℃

Working humidity: 0 - 95%
